Tutorial 2-UML Diagram:Class diagrams

2.Class Diagram
A Class diagram gives an overview of a system by showing its classes and the relationships among them. Class diagrams are static -- they display what interacts but not what happens when they do interact.

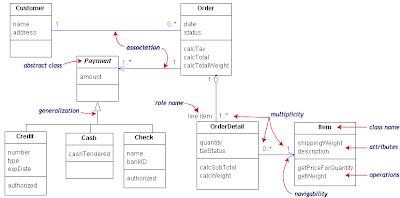

The class diagram below models a customer order from a retail catalog. The central class is the Order. Associated with it are the Customer making the purchase and the Payment. A Payment is one of three kinds: Cash, Check, or Credit. The order contains OrderDetails (line items), each with its associated Item.



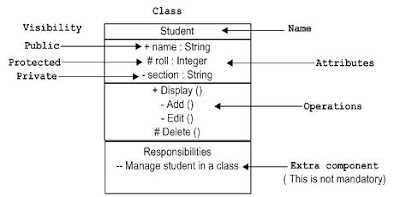

UML class notation is a rectangle divided into three parts: class name, attributes, and operations. Names of abstract classes, such as Payment, are in italics. Relationships between classes are the connecting links.
Our class diagram has three kinds of relationships.
a)association -- a relationship between instances of the two classes. There is an association between two classes if an instance of one class must know about the other in order to perform its work. In a diagram, an association is a link connecting two classes.
b)aggregation -- an association in which one class belongs to a collection. An aggregation has a diamond end pointing to the part containing the whole. In our diagram, Order has a collection of OrderDetails.
c)generalization -- an inheritance link indicating one class is a superclass of the other. A generalization has a triangle pointing to the superclass. Payment is a superclass of Cash, Check, and Credit.
An association has two ends. An end may have a role name to clarify the nature of the association. For example, an OrderDetail is a line item of each Order.
A navigability arrow on an association shows which direction the association can be traversed or queried. An OrderDetail can be queried about its Item, but not the other way around. The arrow also lets you know who "owns" the association's implementation; in this case, OrderDetail has an Item. Associations with no navigability arrows are bi-directional.
The multiplicity of an association end is the number of possible instances of the class associated with a single instance of the other end. Multiplicities are single numbers or ranges of numbers. In our example, there can be only one Customer for each Order, but a Customer can have any number of Orders.

This table gives the most common multiplicities.

0..1 =zero or one instance. The notation n . . m indicates n to m instances.
0..* or * =no limit on the number of instances (including none).
1 =exactly one instance
1..*= at least one instance


Every class diagram has classes, associations, and multiplicities. Navigability and roles are optional .


Difference between Composition and Aggregation
Composition:

As we know, inheritance gives us an 'is-a' relationship. To make the understanding of composition easier, we can say that composition gives us a 'part-of' relationship. Composition is shown on a UML diagram as a filled diamond

If we were going to model a car, it would make sense to say that an engine is part-of a car. Within composition, the lifetime of the part (Engine) is managed by the whole (Car), in other words, when Car is destroyed, Engine is destroyed along with it. So how do we express this in C#?

public class Engine
{
. . .
}

public class Car

{

Engine e = new Engine();

.......

}

As you can see in the example code above, Car manages the lifetime of Engine.

Aggregation:
The CRM system has a database of customers and a separate database that holds all addresses within a geographic area. Aggregation would make sense in this situation, as a Customer 'has-a' Address. It wouldn't make sense to say that an Address is 'part-of' the Customer, because it isn't. Consider it this way, if the customer ceases to exist, does the address? I would argue that it does not cease to exist. Aggregation is shown on a UML diagram as an unfilled diamond


So how do we express the concept of aggregation in C#? Well, it's a little different to composition. Consider the following code:

public class Address
{
. . .
}

public class Person

{

private Address address;

public Person(Address address)

{

this.address = address;

}

. . .

}

Person would then be used as follows:

Address address = new Address();
Person person = new Person(address);

or

Person person = new Person( new Address() );

As you can see, Person does not manage the lifetime of Address. If Person is destroyed, the Address still exists. This scenario does map quite nicely to the real world.
